Description

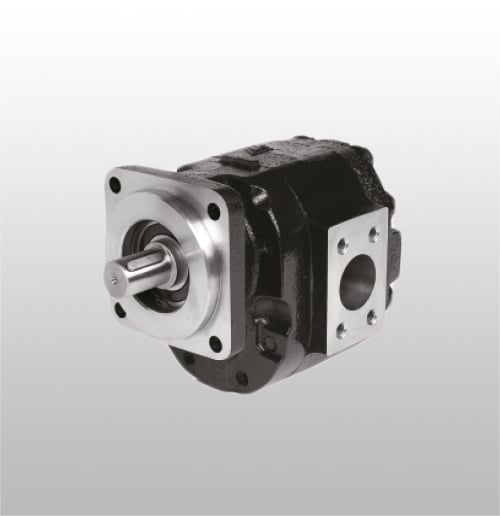

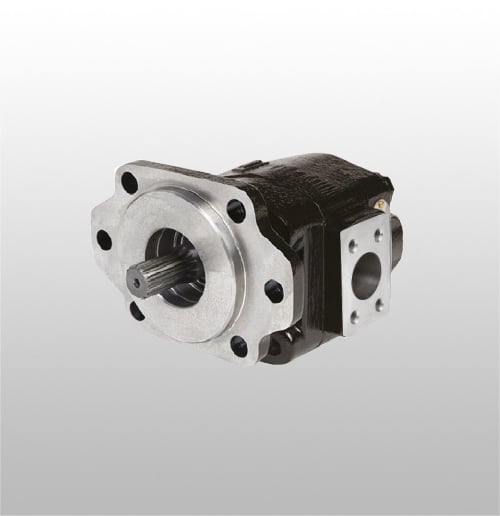

ULTRA PGP 620/625/640 SERİSİ DÖKÜM GÖVDE POMPALAR | ||||
TİPİ | Depl. | Çalışma | Maks. Hız | Emiş-Basınç |
PGP 620/625 | cc/dev. | Basıncı (bar) | d/dak | 4-Bolt |
PGP-620-A-0160-C-T1-D7-N-L3-L2 | 16 | 275 | 3500 | 51mm / 40mm |
PGP-620-A-0190-C-T1-D7-N-L3-L2 | 19 | 275 | 3500 | 51mm / 40mm |
PGP-620-A-0230-C-T1-D7-N-L3-L2 | 23 | 275 | 3500 | 51mm / 40mm |
PGP-620-A-0260-C-T1-D7-N-L3-L2 | 26 | 275 | 3500 | 51mm / 40mm |
PGP-620-A-0290-C-T1-D7-N-L3-L2 | 29 | 275 | 3500 | 51mm / 40mm |
PGP-620-A-0330-C-T1-D7-N-L3-L2 | 33 | 275 | 3500 | 51mm / 40mm |
PGP-625-A-0360-C-T1-D7-N-L3-L2 | 36 | 280 | 3500 | 51mm / 40mm |
PGP-625-A-0410-C-T1-D7-N-L3-L2 | 41 | 280 | 3500 | 51mm / 40mm |
PGP-625-A-0450-C-T1-D7-N-L3-L2 | 45 | 260 | 3500 | 51mm / 40mm |
PGP-625-A-0500-C-T1-D7-N-L3-L2 | 50 | 230 | 3000 | 51mm / 40mm |
PGP-620-A-0520-C-T1-D7-N-L3-L2 | 52 | 210 | 3000 | 51mm / 40mm |
TİPİ | Depl. | Çalışma | Maks. Hız | Emiş-Basınç |
PGP 640 | cc/dev. | Basıncı (bar) | d/dak | SAE |
PGP-640-A-0300-C-D1-H3-N-T3-T2 | 30 | 310 | 3000 | SAE 1″ – SAE 3/4″ |
PGP-640-A-0350-C-D1-H3-N-T3-T2 | 35 | 310 | 3000 | SAE 1″ – SAE 3/4″ |
PGP-640-A-0400-C-D1-H3-N-T3-T2 | 40 | 310 | 3000 | SAE 1″ – SAE 3/4″ |
PGP-640-A-0450-C-D1-H3-N-T4-T3 | 45 | 310 | 3000 | SAE 1 1/4″ – SAE 1″ |
PGP-640-A-0500-C-D1-H3-N-T4-T3 | 50 | 310 | 3000 | SAE 1 1/4″ – SAE 1″ |
PGP-640-A-0550-C-D1-H3-N-T4-T3 | 55 | 310 | 3000 | SAE 1 1/4″ – SAE 1″ |
PGP-640-A-0600-C-D1-H3-N-T5-T4 | 60 | 290 | 3000 | SAE 1 1/2″ – SAE 1 1/4″ |
PGP-640-A-0650-C-D1-H3-N-T5-T4 | 65 | 265 | 3000 | SAE 1 1/2″ – SAE 1 1/4″ |
PGP-640-A-0700-C-D1-H3-N-T5-T4 | 70 | 245 | 3000 | SAE 1 1/2″ – SAE 1 1/4″ |
PGP-640-A-0750-C-D1-H3-N-T5-T4 | 75 | 225 | 3000 | SAE 1 1/2″ – SAE 1 1/4″ |
PGP-640-A-0800-C-E4-K3-N-T5-T4 | 80 | 210 | 3000 | SAE 1 1/2″ – SAE 1 1/4″ |
PGP-640-A-1000-C-E4-K3-N-T6-T5 | 100 | 180 | 3000 | SAE 2″ – SAE 1 1/2″ |
